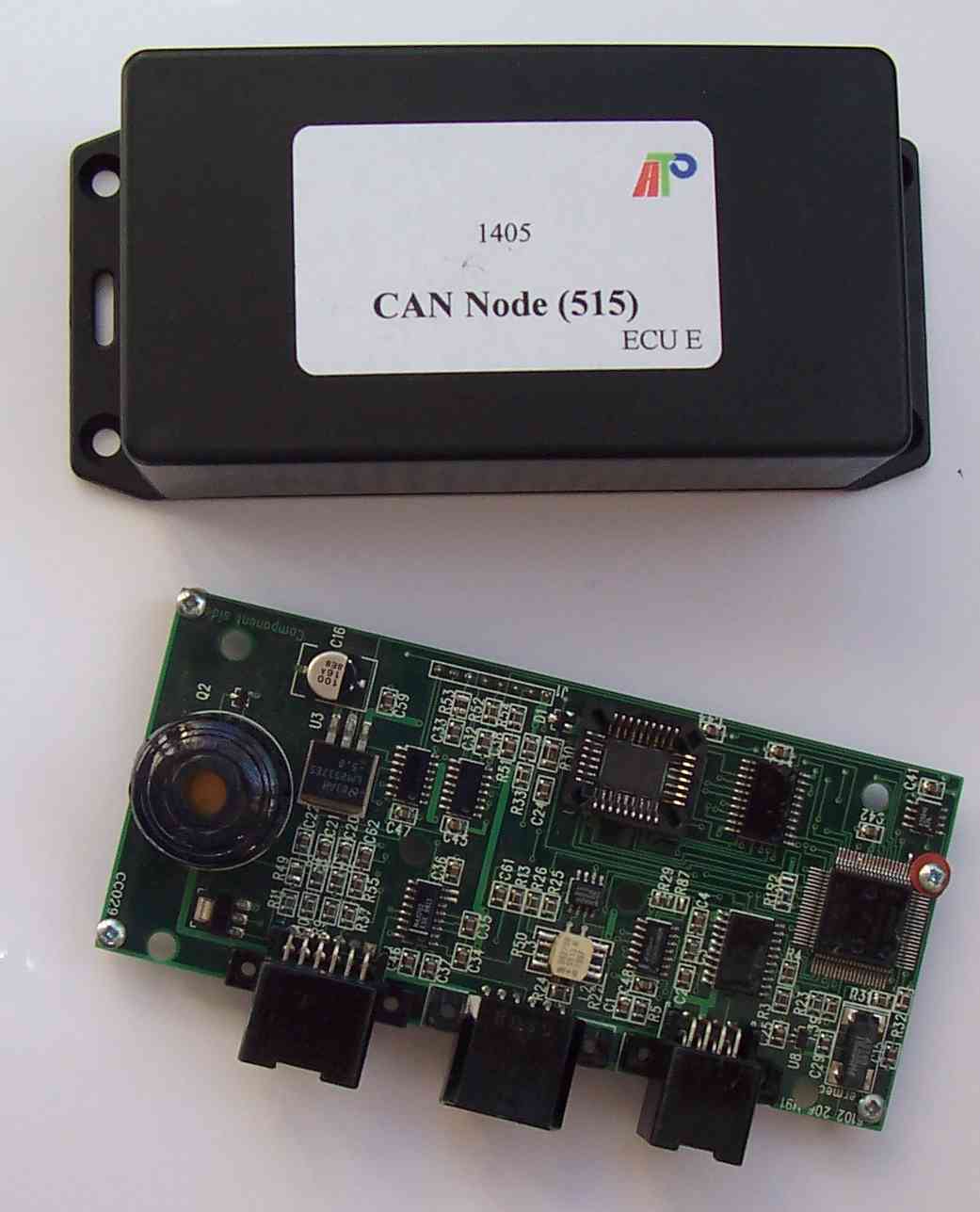

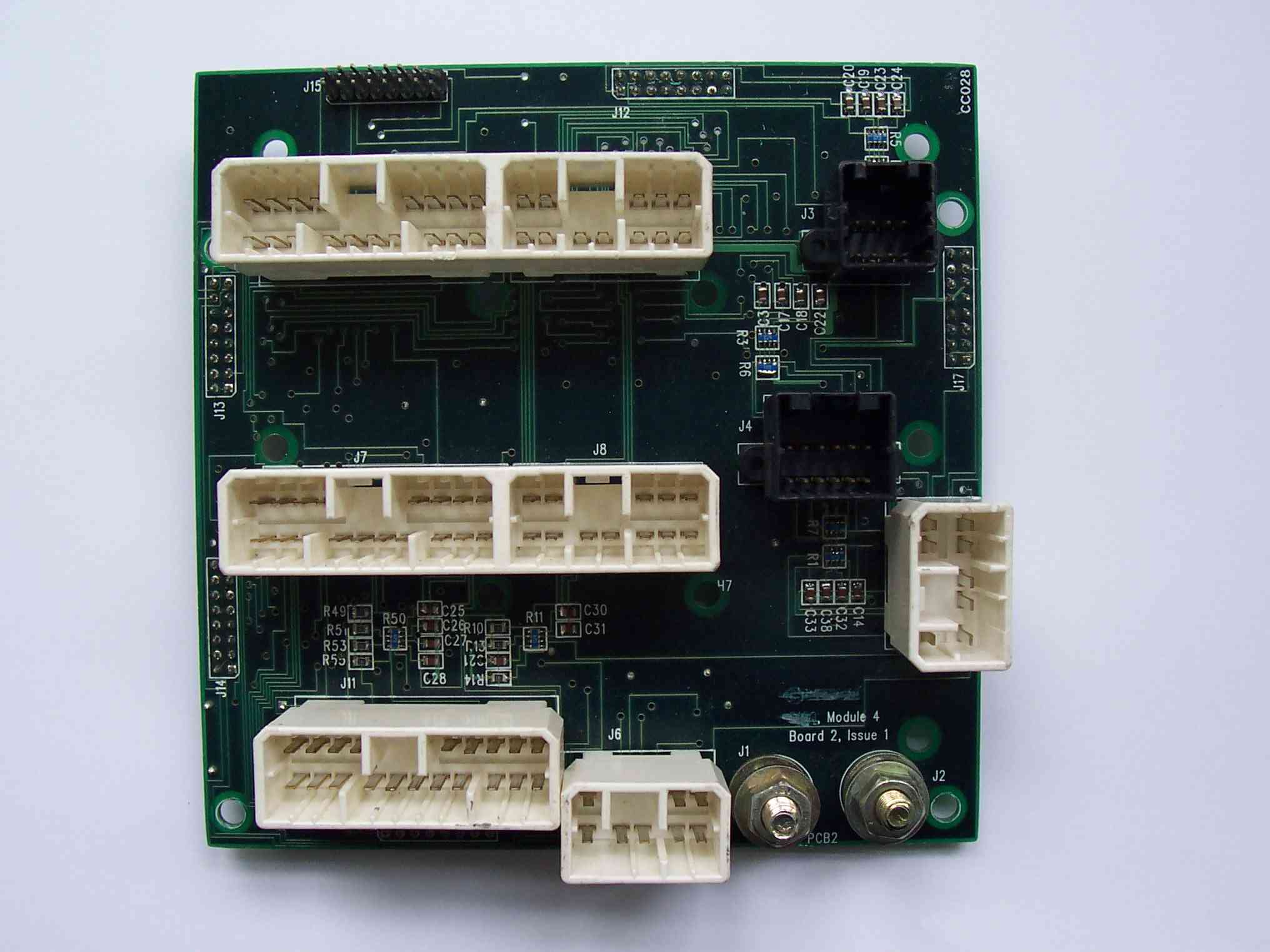

CAN modules
We have a range of standard CAN modules for use in vehicle applications.
The hardware and software is designed in a modular way. This provides the maximum flexibility for the vehicle system design and customised units can therefore be put together to customer requirements.
The I/O is user defineable on each module and the functionality can be programmed at system level.
LIN - Most modules are capable of supporting LIN master or slave.
We also produce a range of non-CAN multiplex nodes. Our series 5000 modules are a proprietary protocol using a Master and up to 4 Slaves in the standard configuration.
This give up to 80 I/O and is user configureable.
This is a very cheap but proven alternative to LIN for body electrical systems.
top
Voltage converter
24V to 12V voltage converter for in vehicle system use.
Specification:
Input voltage :- 18V to 40V
Output voltage :- 12V +-0.5V
Output current :- 0A to 2.5A
Quiescent supply voltage :- 40uA (0.04mA)
Fully protected against Automotive transients:- Reverse battery, Load dump transient, etc.
